Laser Tables & Systems
Choose the platform that matches your throughput, material mix, and automation goals.
HF‑C Series
PROFESSIONAL DUAL PLATFORM LASER CUTTING MACHINE
Low cost,high speed and high accuracy cutting of thin plates
Model
HF3015C
HF4020C
HF6325C
Effective Cutting Range
120" × 60"
157" × 78"
248" × 98"
Max. Linkage Speed
4330 ipm
5511 ipm
Max Z Speed
1574 ipm
Machine Footprint
342" × 114"
375" × 129"
590" × 57"
HF‑A Series
ECONOMICAL SINGLE PLATFORM MACHINE LATHE
Movable operating platform, for easy operation
Model
HF3015A
HF4020A
HF6320A
Effective Cutting Range
120" × 60"
157" × 78"
248" × 98"
Max. Linkage Speed
4330 ipm
Max Z Speed
1574 ipm
Machine Footprint
185" × 102"
220" × 118"
342" × 153"

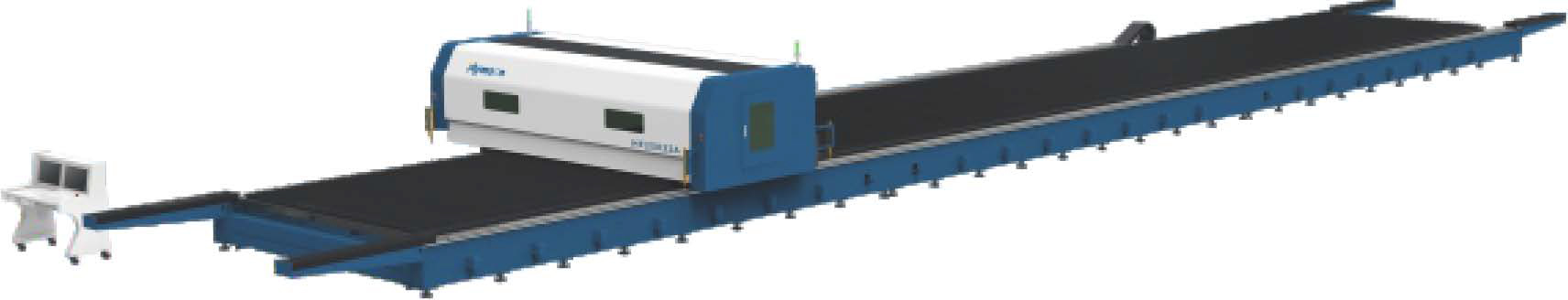

HF‑A (LARGE FORMAT)
HF-A(LARGE FORMAT) SERIES FIBER LASER CUTTING MACHINE
Customized Large Format Laser Cutting Machine
Model
HF13026A
HF14032A
HF26035A
Effective Cutting Range
511" × 102"
551" × 125"
1023" × 137"
Max. Linkage Speed
6000-60000W
Max Z Speed
1574 ipm
Machine Footprint
653" × 153"
692" × 177"
1220" × 216"

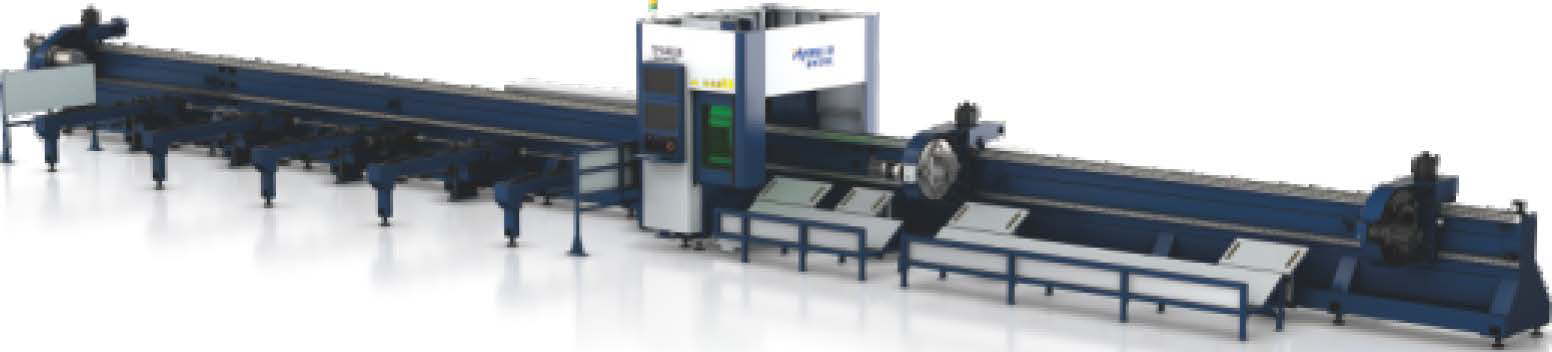

TP SERIES (THREE CHUCKS)
TP SERIES (THREE CHUCKS) TUBE LASER CUTTING MACHINE
Three Chucks Zero Tail Heavy-Duty Tube Lase Cutting Machine
Model
TP6024
TP6026
TP9028
Tube Specification
ɸ0.39"~ɸ9.45"
◻0.39"~◻9.45"
◻0.39"~◻9.45"
ɸ0.39"~ɸ10.24"
◻0.39"~◻10.24"
◻0.39"~◻10.24"
ɸ0.39"~ɸ11.02"
◻0.39"~◻11.02"
◻0.39"~◻11.02"
Loading Length
236"
236"
354"
Max Weight of a Single Tube
661 lb
661 lb
661 lb
Machine Footprint
551" × 157"
551" × 177"
708" × 196"

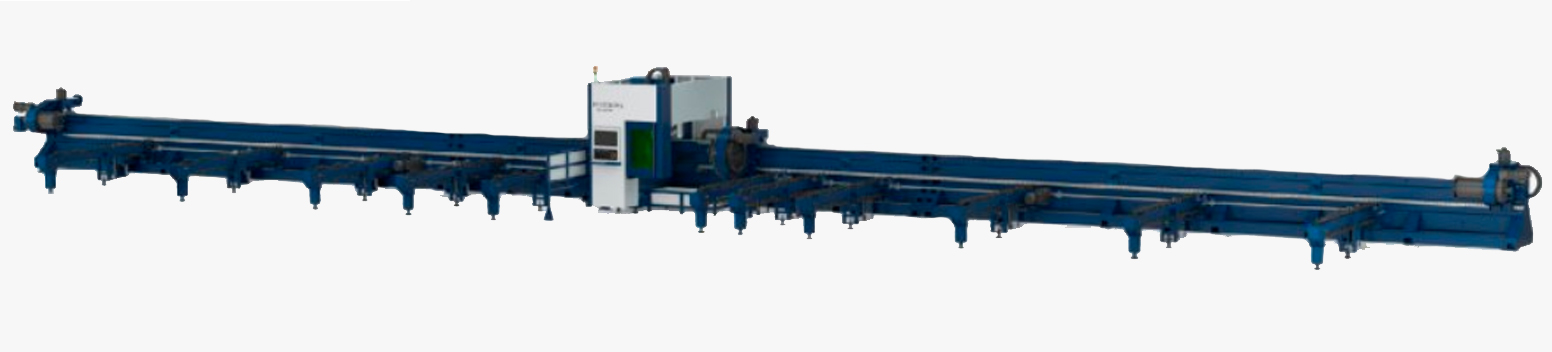

FP SERIES (FOUR CHUCKS)
FP SERIES (FOUR CHUCKS) TUBE LASER CUTTING MACHINE
Four Chucks Zero Tail Heavy-Duty Tube Lase Cutting Machine
Model
TP6024
TP6026
TP9028
Tube Specification
ɸ0.78"~ɸ14.17"
◻0.78"~◻14.17"
◻0.78"~◻14.17"
ɸ0.78"~ɸ14.17"
◻0.78"~◻14.17"
◻0.78"~◻14.17"
ɸ1.97"~ɸ22.05"
◻1.97"~◻22.05"
◻1.97"~◻22.05"
Loading Length
354"
472"
472"
Max Weight of a Single Tube
2645 lb
2645 lb
2645 lb
Machine Footprint
708" × 196"
1181" × 196"
1181" × 196"

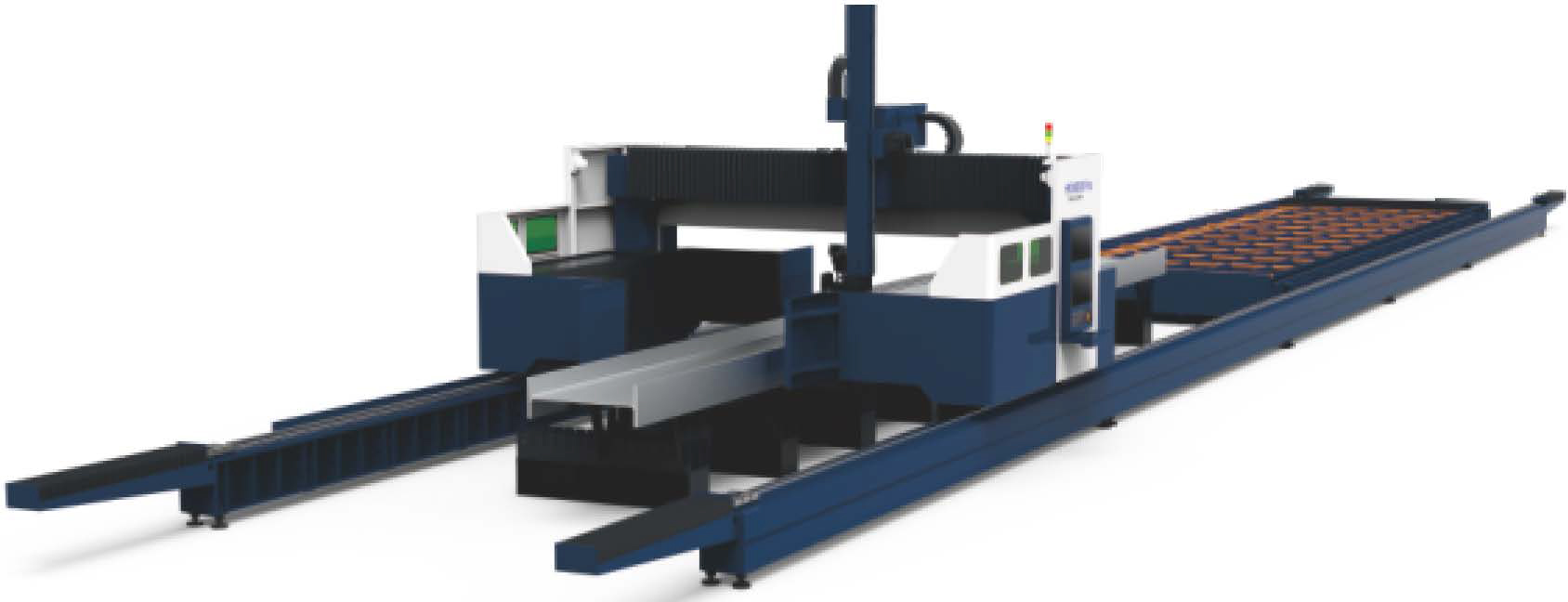

HP SERIES PROFILES
HP SERIES PROFILES FIBER LASER CUTTING MACHINE
Efficient Solutions For The Steel Construction Industry
Model
HP12100
HP26100
HP26150
WebH
≤39.37"
≤59.06"
Processing Capacity
Flange B
≤19.69"
Length L
≤472.44"
HF‑G Series
HIGH SPEED LASER CUTTING MACHINE
Effectively improves cutting efficiency by 50%-200%
Model
HF3015G
HF4020G
HF6320G
Effective Cutting Range
122" × 61"
157" × 78"
248" × 78"
Max. Linkage Speed
5512 ipm
Max Z Speed
1575 ipm
Machine Footprint
342" × 110"
375" × 129"
590" × 157"

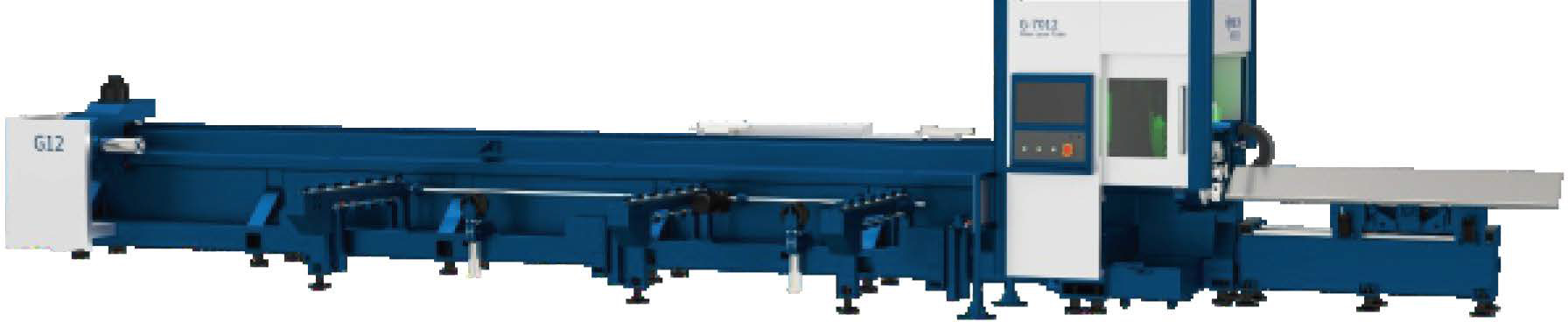

G SERIES
HIGH SPEED TUBE LASER CUTTING MACHINE
Redefining laser tube cutting: High-speed, high-precision, zero remnant, zero lag.
Model
G7012
G7024
Effective Cutting Range
ɸ0.19"~ɸ4.72"
◻0.19"~◻4.72"
◻0.19"~◻4.72"
ɸ0.39"~ɸ9.45"
◻0.39"~◻9.45"
◻0.39"~◻9.45"
Loading Length
275"
Machine Footprint
511" × 137"
511" × 157"

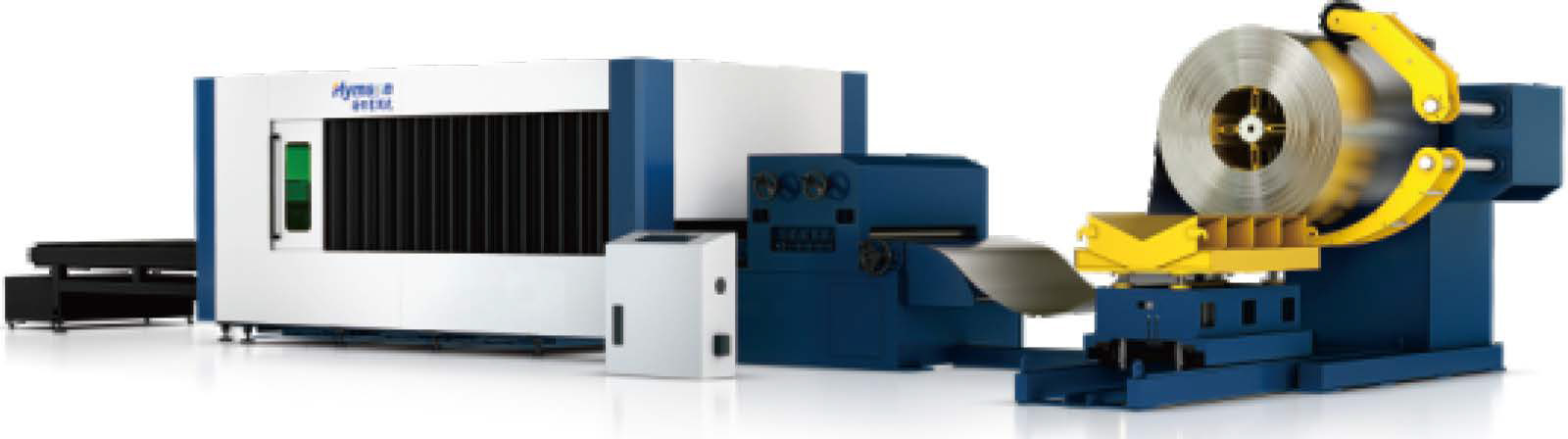

GTU Series
GTU SERIES COIL CUTTING AUTOMATIC PRODUCTION LINE
Integrated Fully Automatic Coil Cutting
Model
HF3015GTU
HF4015GTU
HF6015GTU
Effective Cutting Range
120" × 60"
157" × 60"
236" × 78"
Power
3000W-6000W
Max. Linkage Speed
4331 ipm
Max Z Speed
1575 ipm
Machine Footprint
633" × 208"
673" × 208"
830" × 208"
